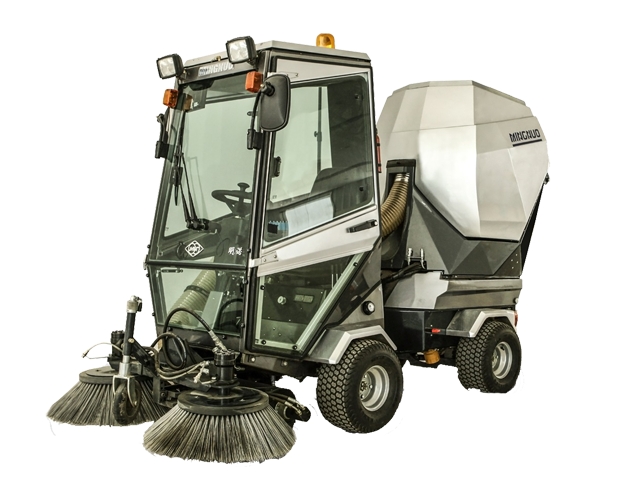

Technicial Specifications
Engine	Perkins  Diesel Motor (403D-11)
Engine power	21 Kw
Engine type	Euro 3
Garbage chamber capacity	600 Liters
Water tank capacity	150 Liters
Fuel tank capacity	20 liters
Idle working speed	10 km/h
Forward speed	25 km/h
Reverse speed	10 km/h
Sweeping efficiency	10000-16000 m2/hour
Sweeping width (2 brushes)	1400 mm
Sweeping width (3 brushes)	1650 mm
Rotation angle	3000 mm
Ramp angle	%25
Height of brush from the floor	140 mm
Weight of maximum garbage chamber	300 Kg
Weight of maximum chamber	180 Kg
Weight of container chassis	35 Kg
Diesel operational consumption	264 g/kwh
Walking system	Traction from 4 wheels
Hydraulic system	Steering wheel
Two circuit hydraulic system	√
Drive type	Hydro static
Air flow	2500 m3/ hour
Air speed	155 km / hour
Extension vacuum hose (length)	4 meters
Diameter of extension vacuum hose	110 mm
Tire sizes	18-9.50-8

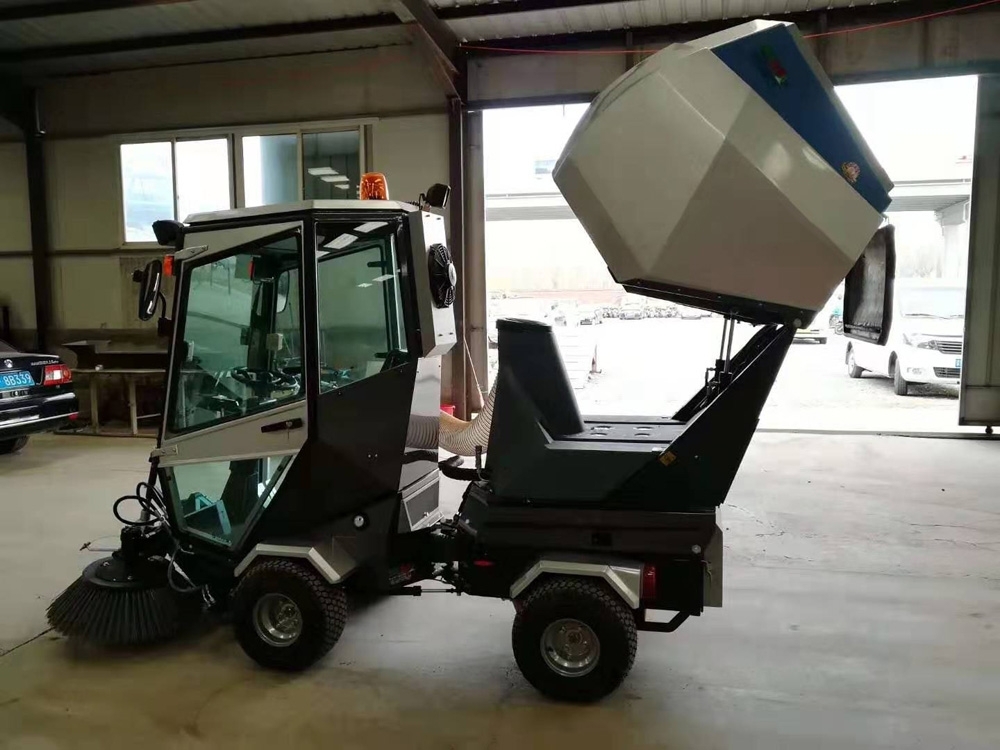

Discharge Height	1400 mm
Total length	3080 mm
Total width	1160 mm
Total height	1950 mm
Weight of vehicle	1000 kg

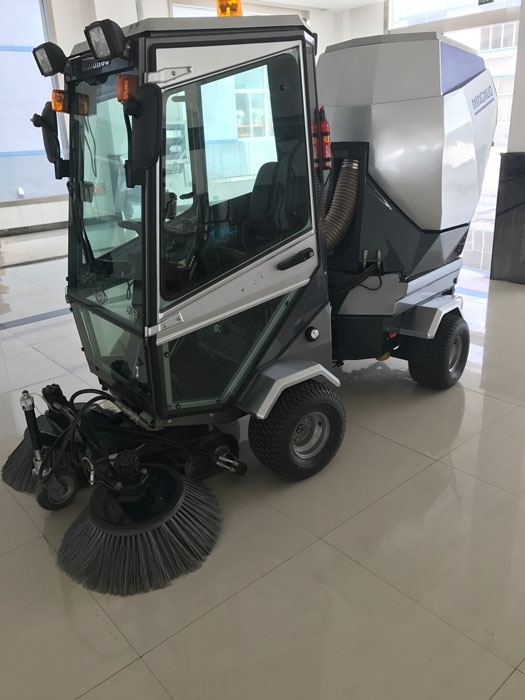

“Optional 2,3 and 4 Brush choices”
» While the 2 brushes on the vehicle are standard, as optional there are 3rd and 4th brush choices as well.

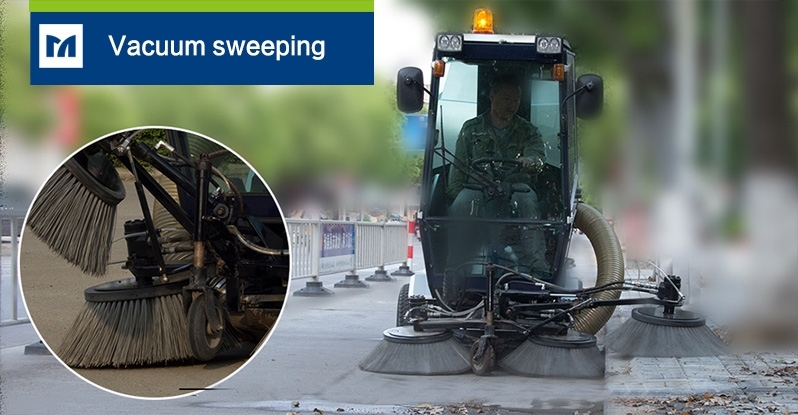

» There is a specially designed filtering system on the brushes that is connected with water spraying system as being operated integrally, which enables for the smallest dust particulars to be captured in the garbage tank.

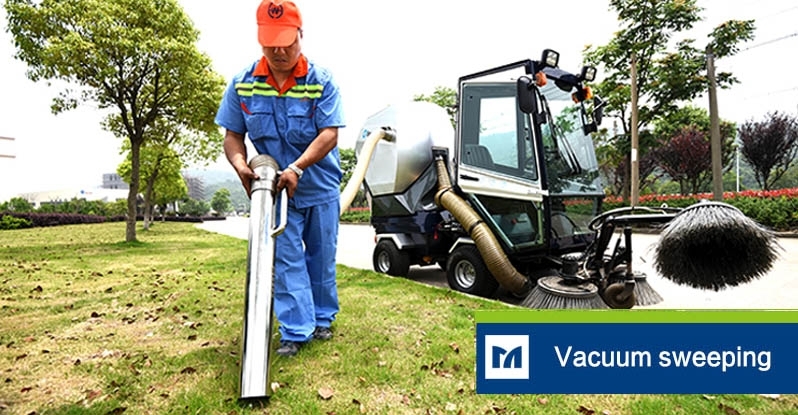

» With the external side absorption hose, vacuuming is realized by reaching to the garbage at far distances.
» With its hydro static walking system, it can be used with high performance on sloping, snowy and rough roads.
» This vehicle, the size of which is small and the capacity of which is big, has got high maneuverability at narrow areas.
» By means of height adjustment of front brushes and nose wheel, it can be used for long period without abrasion of brushes.
» Perkins 3 cylinder diesel motor being guaranteed by Turkish distributor, enables for the lowest fuel consumption in its class with its economical fuel usage.
» By means of its multifunctional system, garbage chamber and brush nozzle stand are delivered together with the vehicle.
